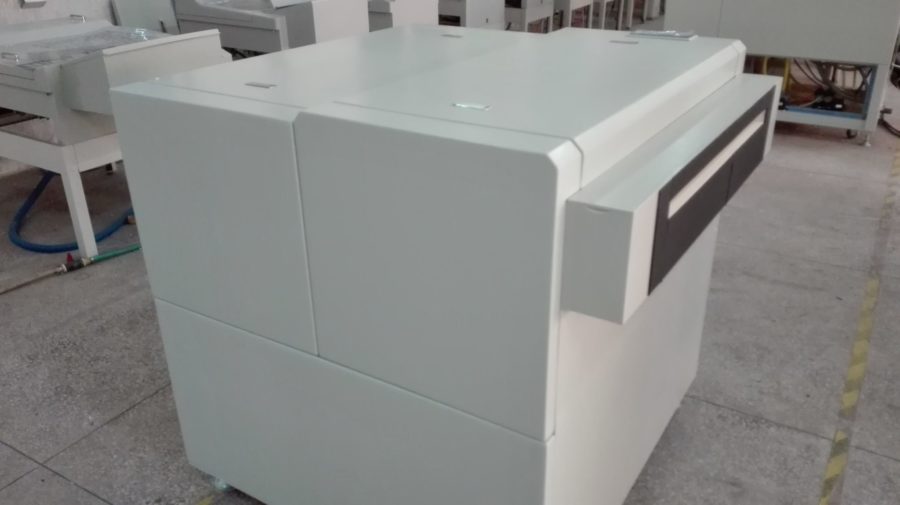

WIDE Film processor
Designed for reliable processing of all types of common used PCB films
Call our global sales and customer support team on +44 (0) 2380 667 486 for more information.
Features and benefits
1 year warranty
Advanced control
High quality
Outstanding reliability
Precision excellence
Information
Machine Model
Film processor
Manufacturer
WIDE
Key Features
1 year warranty, Advanced control, High quality, Outstanding reliability, Precision excellence
Description:
Designed for reliable processing of all types of common used PCB films producing high quality PCB images.
G. System SpecificationsTechnical Data
Specification
Minimum developing length
150mm
Developing rate
1130 ~ 363mm/min
Time for complete process
80 ~ 240s
Time adjustment scope for developing
20 ~ 60s
Temperature adjustment scope of chemical solution
20 ~ 37°C
Temperature adjustment scope of drying
40 ~ 65°C
Amount of replenishment
30 ~ 300mL/0.5m²
Volume of chemical solution tank
(Dev) 13L(Fix) 12.5L)
Dimensions (L x W x H)
1340 x 1050 x 960mm (LWH)
Power requirements
220V / 4KW
Thickness of film to be developed
0.08 ~ 0.25mm
Thickness of resin plate to be developed
0.1 ~ 0.25mm
Length of film to be developed
200 ~ 60mm (roll film)
Volume of tank for added chemical solution
15.2L
Volume of tank for waste solution
14.5L
