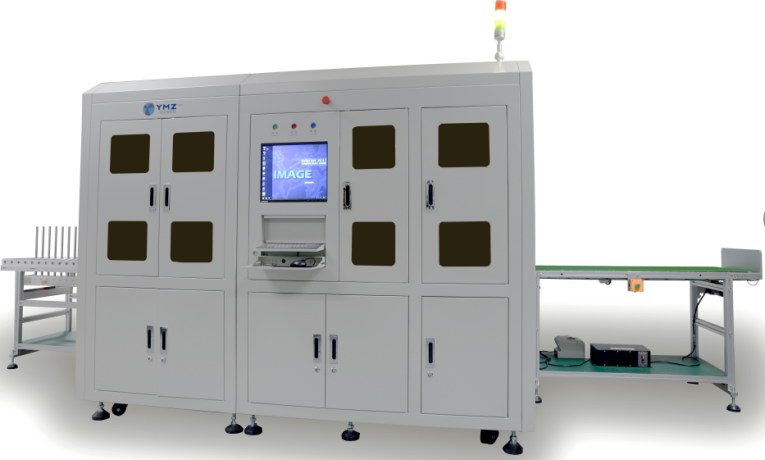

Image Automatic Visual Inspection Machine - Large Size Single Table Series

It can be applied for HASL, immersion tin, immersion gold, gold plating, immersion silver, OSP anti-oxidation board, etc.

Enquire now

Call our global sales and customer support team on +44 (0) 2380 667 486 for more information.

Features and benefits

1 year warranty

High accuracy

High efficiency

High quality

High speed

Information

Machine Model

Automatic Visual Inspection Machine - Large Size Single Table Series

Manufacturer


Key Features

1 year warranty, High accuracy, High efficiency, High quality, High speed

Description:

Belt conveyor system, dual-sided simultaneous inspection for high efficiency

CNC multi-angle adjustable light source, in high image quality

Self-developed AI system, which can realize the function of sub-board

Infrared light is standard, which can detect defects under the ink

Support semi-detached board detection, effectively improving production capacity

The functions of hole inspection, warpage and hole wall inspection can be expanded

AT650 Technical Specifications

Technical Data

Specification

Camera Resolution

10-25μm/pixel

Board Size Range（mm）

Min：60×140 Max：500×650

Multi-panel Size（mm）

Double-panel：240×650

Board Thickness Range（mm）

0.4-5

Single Panel Efficiency（Pcs/H）

400-1000

Light Source

LED white light + IR light + red backlight (digital adjustment, software-controlled)

Data Format Support

ODB++, RS-274X conversion

AT760 Technical Specifications
